Stainless Steel Angle

The main purpose for Stainless Steel Angle is to provide

protection of tiled surfaces against chipping and wear.

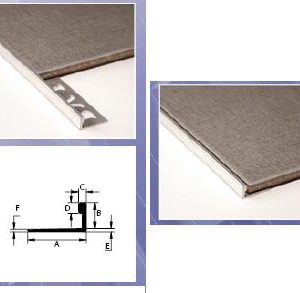

Although similar in purpose to both the Aluminium and

Brass Angles Stainless Steel is used in applications where far

superior mechanical and chemical properties are required.

It also provides an attractive fi nish in installations that include

polished fi xtures.

Stainless Steel is highly recommended in areas where strict

sanitary requirements / regulations are in place (i.e: food

preparation areas hospitals swimming pool areas etc.) and

areas where exposure to strong chemicals is prevalent.

Stainless Steel Angle is roll-formed from 1mm thick steel.

Stainless Steel Angle is available in two grades – Grade

304 which can be used extensively in domestic and some

commercial environments however should be limited only

to applications where exposure to water is intermittent and

Grade 316 which can be used in most environments where

both exposure to harsh cleaning solutions and frequent

exposure to water occur.

Stainless Steel Angle – Grade 304 – Available in 3m lengths

B.A.T. Code: A (mm) B (mm) C (mm) D (mm)

SSA-3-3 24.00 3.00 3.00 1.00

SSA-4-3 24.00 4.50 3.00 1.00

SSA-6-3 24.00 6.00 3.00 1.00

SSA-8-3 24.00 8.00 3.00 1.00

SSA-10-3 24.00 10.00 3.00 1.00

SSA-12-3 24.00 12.50 3.00 1.00

SSA-15-3 24.00 15.00 3.00 1.00

SSA-22-3 24.00 22.00 3.00 1.00

Stainless Steel Angle – Grade 316 – Available in 3m lengths

B.A.T. Code: A (mm) B (mm) C (mm) D (mm)

SSAMG-8-3 24.00 8.00 3.00 1.00

SSAMG-10-3 24.00 10.00 3.00 1.00

SSAMG-12-3 24.00 12.50 3.00 1.00
